Measurement for absolute value(A.U.)
BOM-L1 TR (Three lasers) （OXY Hb, DEOXY Hb, TOTAL Hb, StO2）
|
 |
Measurement for cahange of blood volume
BOM-L1 (Two lasers) （ΔOXY Hb, ΔDEOXY Hb, ΔTOTAL Hb）
|
|
 |
【Outline】

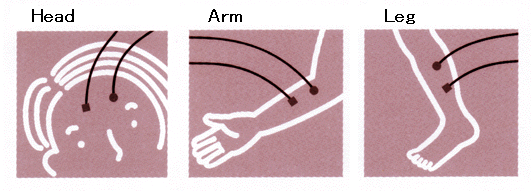

OMEGAMONITOR is designed to measure tissue blood volume and its oxygenation in muscle,
brains and internal organs. The consumption of oxygen in tissue and metabolism can be evaluated by using OMEGAMONITOR. OMEGAMONITOR uses semiconductor lasers which have narrow width of the wavelength, and it allows high S/N ratio measurement. The small change of blood volume can be obtained because of our original laser stability system. |
||
|
【Theory】
OMEGAMONITOR irradiates 2 or 3 laser lights to the tissue under study through
the optical fiber probe. The lights are scattered

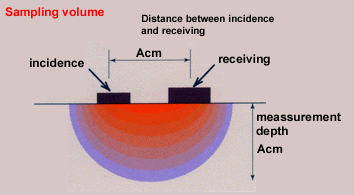

and absorped in the tissue, and a part of the scattred lights are detected by the detector which is put on the tissue at the distance of a few cm from the probe. The absorption in the tissue is mainly caused by haemoglobins, and the absorption spectra of oxy-haemoglobin and deoxy-haemoglobin is different. The oxyganated blood volume and deoxygenated blood volume are calculated from the different changes of the detected laser light intensity. The measurement depth is related to the distance between the incidence and treceiving, and the maximam depth is almost the same as the distance. |
 |
| Model | BOM-L1 TR | BOM-L1 |
| Laser | Laser Diodes 780nm , 810 and 830nm <7mW at the probe end |
Laser Diodes 780nm and 830nm <7mW at the probe end |
| Probe | Optical fibers | |
| Detector | Silicon photo-diode | |
| Absolute Value (Arbitrary unit) | Amount of change | |
| Outputs | Oxygenated Blood Volume in tissue(Oxy Hb) | Oxygenated Blood Volume in tissue(ΔOxy Hb) |
| Deoxygenated Blood Volume in tissue(Deoxy Hb) | Deoxygenated Blood Volume in tissue(ΔDeoxy Hb) | |
| Total Blood Volume in tissue(Total Hb) | Total Blood Volume in tissue(ΔTotal Hb) | |
| Oxygenation (StO2) | ||
| Average Time | 1, 2.0, 5.0 (sec) Selection | |
| Input Voltage | AC 100 to 220V | |
| Size | 257(W)×98(H)×324(D) mm | |
| Weight | 5.5kg | 5kg |
