BOM-L1TR SF Laser Tissue Blood Oxygenation Monitors for shallow- part of tissue |
|||||
| BOM-L1 TRSF is developed for measurement of blood volume and its oxygenation in
a shallow part of tissue from the surface non-invasively and
continuously. BOM-L1 TRSF uses 3 red laser diodes, an optical fiber probe and a special algorithm. BOM-L1 TRSF outputs the volume of oxy-Hb, deoxy-Hb and total Hb, and the oxygenation of the blood. The measuring depth is about 2 - 5mm from surface, and it depends on the optical fiber separation. |
|
| USE : Evaluation for brain condition after ischemia Muscle oxygenation measurement for small animals Evaluation for vasodilator | |
| REF. : Susumu Kashima : Spectroscopic measurement of blood volume and its
oxygenation in a small volume of tissue using red laser lights and differential
calculation between two point detections, Optics & Laser Technology, 35, 485-489, 2003. |
 |
 |
|
|
| HOLDER | PROBE SF25 |

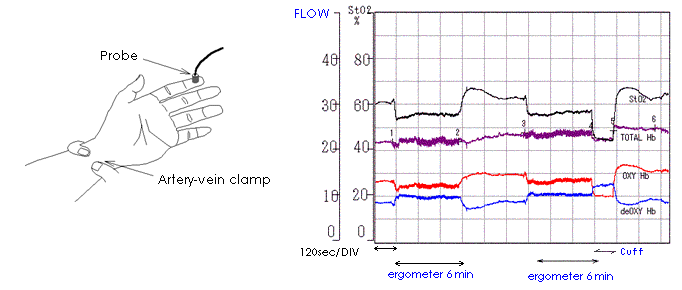

measurement example |
| Laser | Laser Diodes 635nm , 650 and 690nm <2mW at the probe end |
| Probe | Optical fiber |
| Output | Oxygenated Blood Volume in tissue (Oxy-Hb) DeOxygenated Blood Volume in tissue (Deoxy-Hb) Total Blood Volume in tissue (Total Hb) Oxygenation (StO2) 0-10V Analog |
| Indicator | StO2, Total Hb, REFLEX(Received Power) |
| Time constant | 1, 2, 5 (sec) Select |
| Power requirement | 100V , 120V or 240V AC, 0.2W |
| Size | 257(W)×98(H)×324(D) mm |
| Weight | 5kg |
